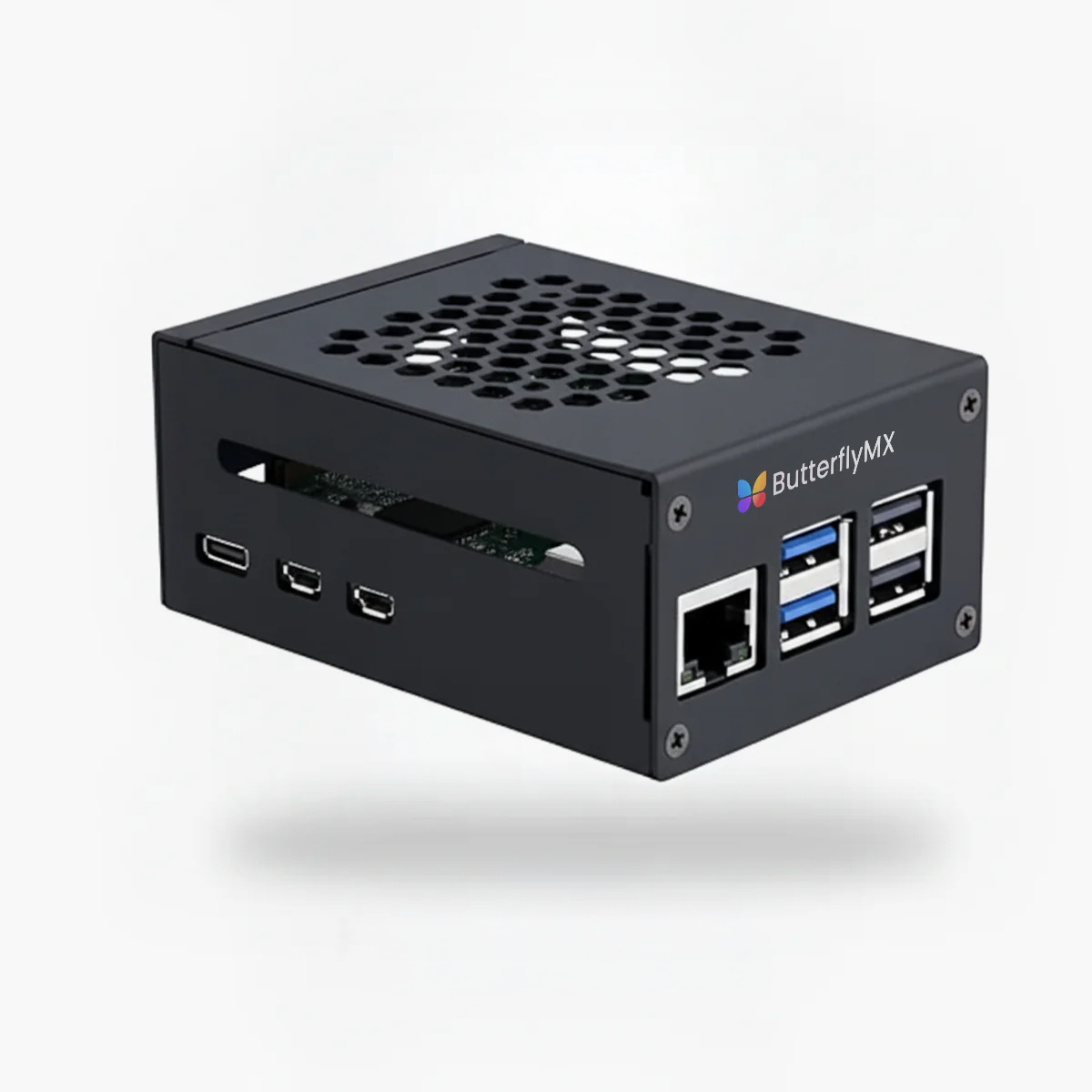

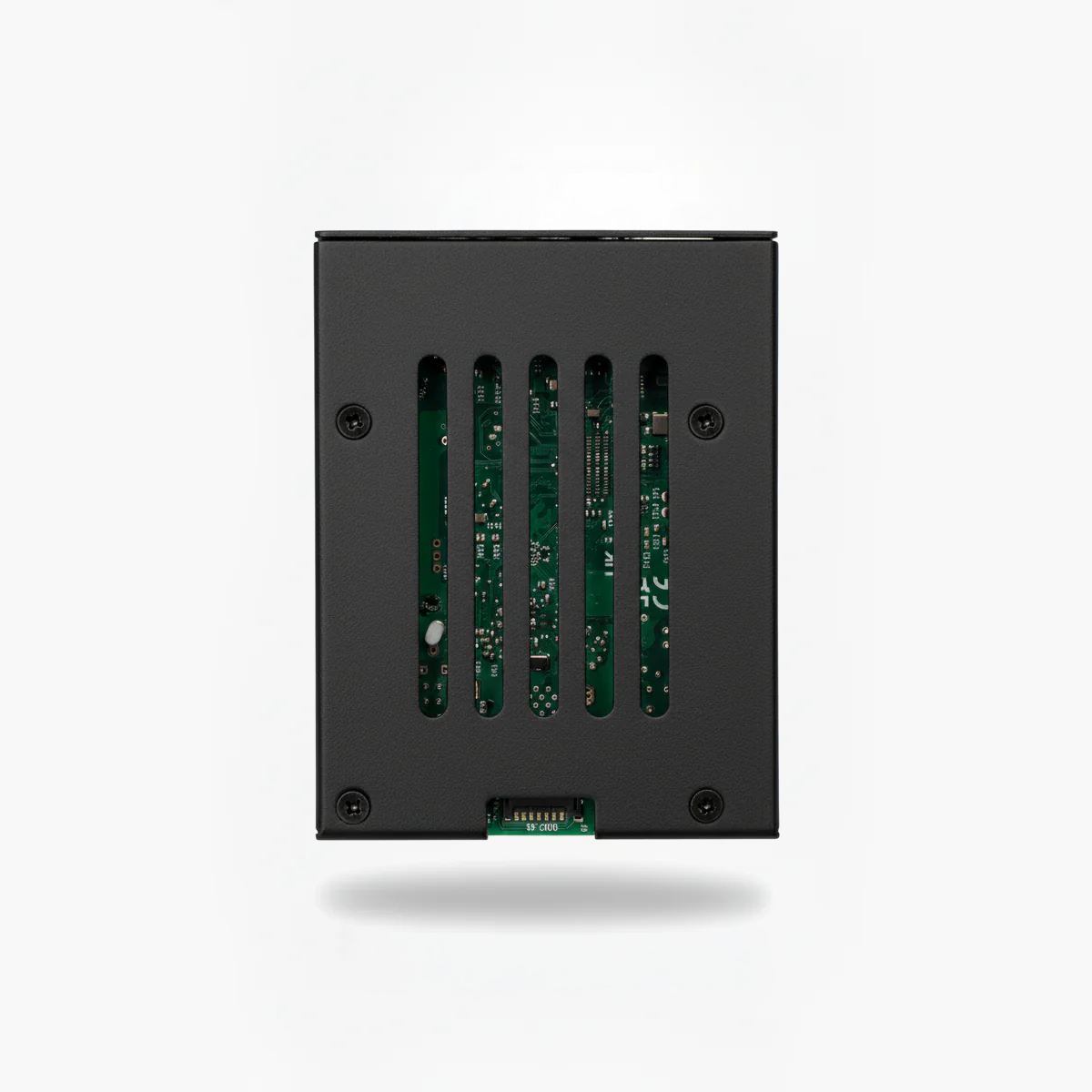

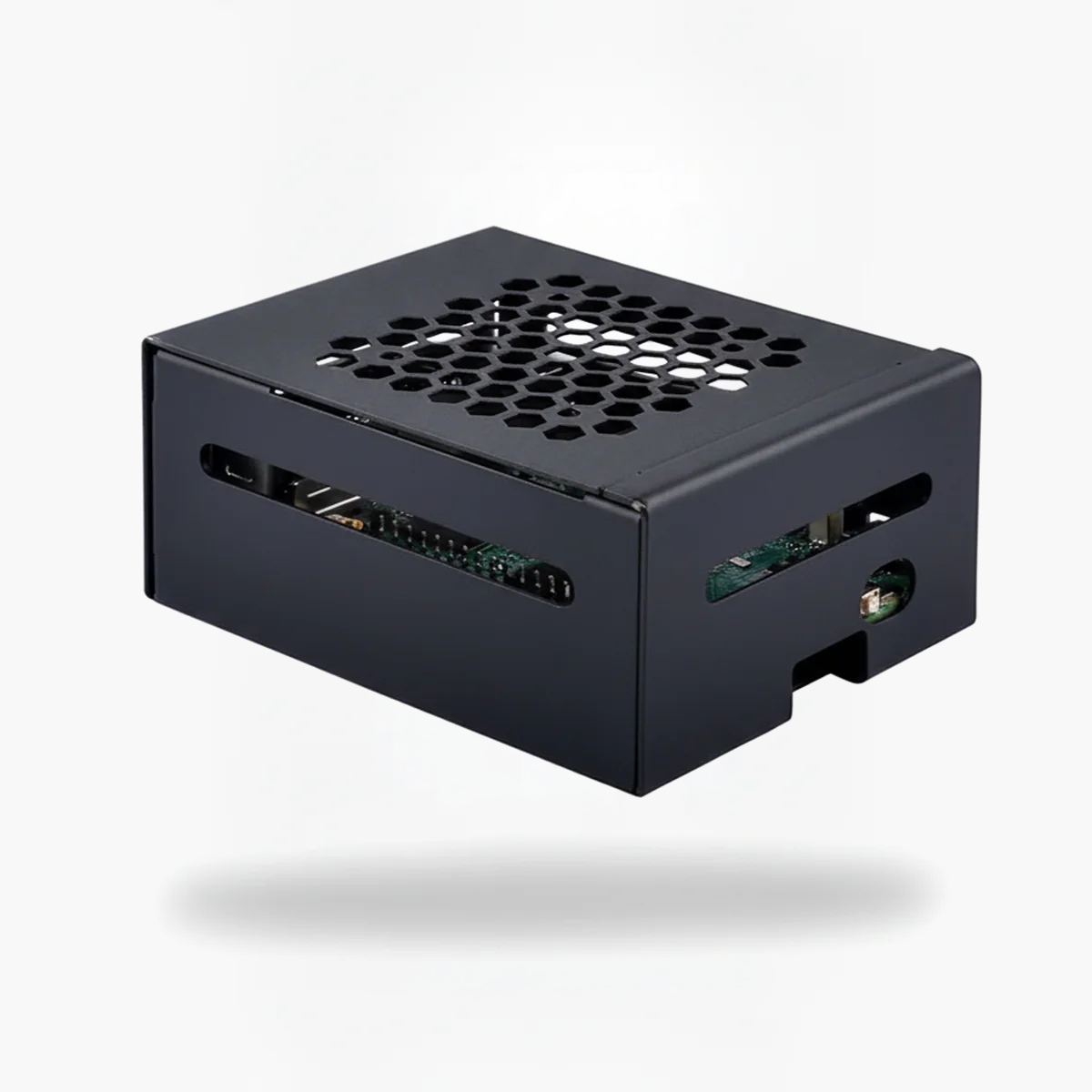

Camera Gateway

The ButterflyMX Security Camera Gateway serves as the central hub that seamlessly connects your property’s IP cameras to the ButterflyMX platform. Capable of supporting up to 10 cameras, it enables live video streams, recorded footage, and access-event tagging — all in one system. Built to handle high performance with a compact form factor, it integrates existing ONVIF-compliant IP cameras and ensures your video and access control work together.

Designed for indoor installation in a secure, weather-protected environment, the Camera Gateway delivers cloud-managed performance, robust storage, and efficient connectivity — helping property managers maintain full visibility and control across their building’s security infrastructure.

Specifications

• Ethernet connectivity: 10/100/1000 Mbps
• On-board storage: 1 TB SSD baseline (~7 days of footage for 10 cameras)
• Ports: 1 Ethernet jack, 2 micro-HDMI, 1 USB-C, 2 USB 3.0, 2 USB 2.0
• Processor: Broadcom 2.4 GHz quad-core 64-bit Arm Cortex-A76
• Power supply: 5 V/5 A DC via USB-C (included)
• Power consumption: up to 7 W max
• Dimensions: 3.5″ L × 2.6″ W × 1.6″ H (90 mm × 66 mm × 41 mm)
• Weight: 0.5 lb (0.23 kg)
• Recommended ambient temperature: 50 °F to 85 °F (10 °C to +29 °C)
• Supports up to 10 IP cameras on the same network and integrates with ONVIF-compliant devices
